If you want to purchase quality with quantity, we are the name to be reckoned with! We are affianced in making available Regenerative Monoblock Pump. As soon as the product is packed, we ensure that it reaches the customer in the dedicated time slot and for that we have well maintained shipping facilities available.

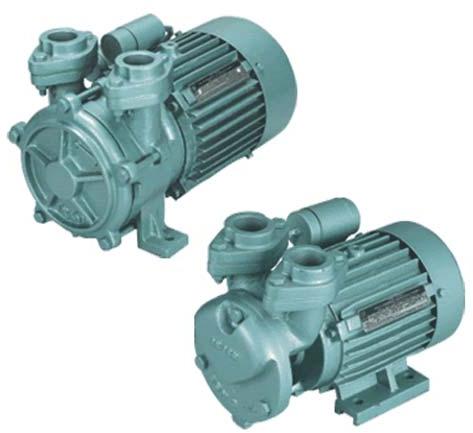

Intro : C.R.I. Regenerative Selfpriming Monoblock pumpsets are with inbuilt check valve on the suction side and there is no need for foot valve. Pumpsets are powered by a totally enclosed fan cooled, AC induction two pole and four pole motors suitable for continuous duty.Motor stator is made of low watt loss steel lamination. Construction of motor frame and usage of quality materials result in high performance and low temperature raise, thereby increasing the life cycle of the motor.
Applications
Pumped Liquids
Clean, thin, non-aggressive, non explosive, clear, cold, fresh water without abrasives, solid particles or fiber having the following characteristics.
Features
| Power | 0.37kW – 0.75kW (0.5 HP – 1.0 HP) |
|---|---|
| Speed | 1440 / 2880 RPM |
| Versions | Single-phase, 220-240 V, 50 Hz, AC supply. CSCR / PSC |
| Maximum total head upto | 42 metre |
| Flow rate upto | 4.2 m /hr |
| Degree of protection | IP 44 |
| Direction of rotation | Clockwise from driving end |
| Class of insulation | A |
| Type of duty | S1 (Continuous) |
| Maximum suction lift | 8 metre (Slow Speed) 7 metre (High Speed) |
| Nominal pumpset size (Suction x Delivery) | 25 x 25 mm |
| Part Name | Material |
|---|---|
| Rear cover / Bracket | Cast Iron |
| Motor Frame | Cast Iron / Mild Steel |
| Shaft | SS – 410 |
| Impeller | Gun Metal |
| Pump casing | Cast iron |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
| Maximum liquid temperature | 330C (max.) |
|---|---|
| Permissible amount of sand | 25g/m3 (max.) |
| Allowable solid | 3000 ppm (max.) |
| Chlorine ion density | 500 ppm (max.) |
| Turbidity | 50-ppm silica scale (max.) |
| Hardness (Drinking water) | 300 ppm (max.) |
| Specific gravity | 1.004 (max.) |
| Viscosity | 1.75 x 106 m2/sec (max.) |
| pH Value | 6.5 to 8.5 |
