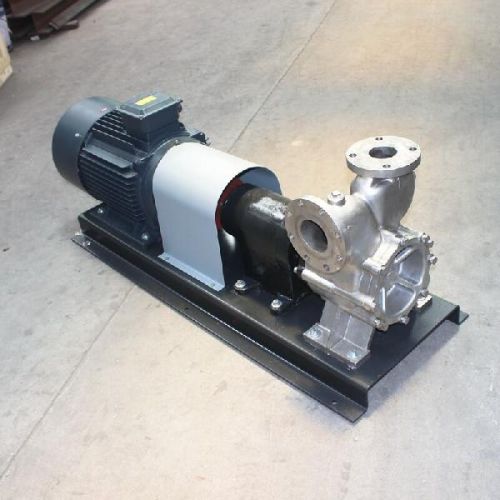

Automatic Regenerative Turbine Pump, Shape : horizontal

Product info.
Working conditions
extra-thin clean,low viscous liquid,or liquid containing extra-fine foreign matters
liquid temperature: -15℃~+120℃
maximum ambient temperature: +40℃
gas-liquid ratio:1:9(gas sution volume 8-10%)
inler:horizontal,outlet:vertical

scope of application
air suspension treating equipment,ozonewater preparing equipment,and biological treeting equipment;
feeding of heating or cooling medium for various temperatureadjusting devices;
various filters:sucking or highpressure transferring lowviscosity liquid from underground tank,such as gasoline and various solvent;
misting treatment of clear water,pure water,foods,chemical solution and waste solution;
strict applications(continuous running,abrupt variation in hydraulic pressure):such as smallscale stream boiler,highbuilding water supply,highressure water injection to highpressure tank,and suction from vacuum tank;
sampling from river or tank,feeding foamable liquid,liquidfeed through long and horizontal pipeline,where air pockets likely occur.
Parameter
model delivery head
(m) rated flow
(m3h) model driving motor
(kw) rotate speed
(rmin)
20glm-1 40 1 0.55 2900
20glmb-1 40 1 0.55 2900
25glm-2 40 2 1.1 2900
25glmb-2 40 2 1.1 2900
40glm-6 40 6 3 2900
40glmb-6 40 6 4 2900
50glm-12 50 12 5.5 2900
50glmb-12 50 12 7.5 2900
20glml-1 40 1 0.55 2900
20glmlb-1 40 1 0.55 2900
25glml-2 40 2 1.1 2900
25glmlb-2 40 2 1.1 2900
40glfl-6 40 6 4 2900
40glmlb-6 40 6 4 2900
50glml-12 50 12 7.5 2900
50glmlb-12 50 12 7.5 2900
