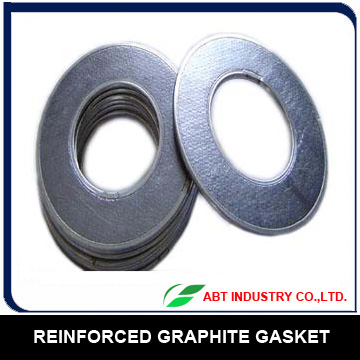

Reinforced Graphite Gasket

Detailed Product Description
Reinforced Graphite Gasket, also known as graphite reinforced composites from high-strength flexible graphite gasket reinforced composite plate by precision cutting, with the packet can be processed into a side edge of outsourcing. With good sealing performance and operability, and low pre-pressure and non-stick used in the flange sealing surface, the installation of easy-to-use pads. To adapt to hot water, high temperature, high pressure steam, hydrogen, ammonia, solvents, hydrocarbons, such as ultra-low temperature liquid medium.
Applicable to all kinds of pipes, valves, pumps, heat exchangers, condensers, pressure vessels, towers manhole, hand hole sealing flange connections, and water level gauge, level gauge, such as gasket mold.
Operating temperature: -200 - +650 tempretrue
Working pressure :6.4-10 .0 MPa
Pretightening pressure: Y = 30MPa
Gasket factor: M = 2
Machining the largest size: 3000mm
