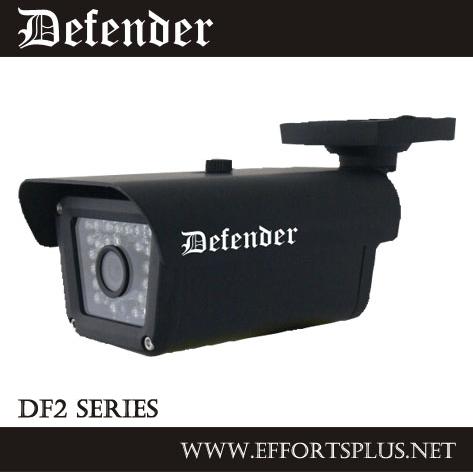

Reliable Surveillance Camera

* Image device: 1/3-inch 960H CCD
* Effective pixels: PAL (H x V): 1,020 x 596
o NTSC (H x V): 1,020 x 508
* Signal systems: PAL/NTSC
* Scanning system: 2:1 inter lace
* Horizontal resolution: 650TVL
* Minimum illumination: 0 lux (IR on)
* S/N ratio: ≥52dB
* Video output: 1.0Vp-p/75Ω
* Vertical frequency: PAL: 50Hz
o NTSC: 60Hz
* Horizontal frequency: PAL: 15.625kHz
o NTSC: 15.734kHz
* Clock frequency: PAL: 36MHz
o NTSC: 36MHz
* Gamma correction: 0.45
* Auto gain control (AGC): on
* Backlight compensation (BLC): off
* White balance: ATW
* Electronic shutter: 1/50 (1/60) to 1/100,000 seconds
* Lens type: 6mm IR lens
* Viewing angle: Diagonal: 53°/ Horizontal: 42°/ Vertical: 32°
* IR LED: 30pcs
* IR effective range: 28m
* Filter: TLC
* Degree of protection: IP66
* Power supply: 12V DC
* Power consumption: 300mA
* Storage temperature: -30 to 60°C
* Operating temperature: -30 to 40°C
* Weight: 750g (1.65lbs)
* Dimensions (L x W x H): 201 x 90 x 86mm (7.91 x 3.54 x 3.39-inch)
