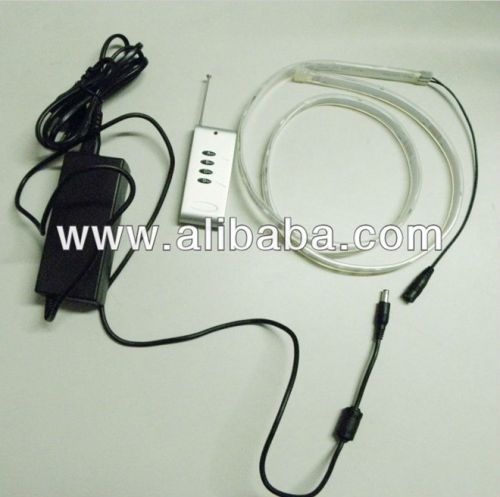

Contact SupplierWe are offering remote control without controller digital addressable led flexible strip light 24leds/m 24image pixel.
detailed product description
this strip no need rgb controller ,you can control directly by manual on the pcb board or by remote controller
specification
product description
5m(16.4feet) tm1812 ic rgb smd5050 led dream clor flexible strip 24leds
input voltage (v)
dc12v
led quantity
32leds/m smd5050 leds
ic quantity
6pcs/meter
ic type
tm1812
light source color
rgb
power consumption
max 15w/meter
product dimension
5000mm*12mm*4mm
suitable places
indoor and outdoor
grey scale
256
image pixel
24
waterproof
waterproof: ip40/ip65/ip67
shipping weight
0.45kg
instructions of the light strip:
light strip with four buttons, key operations are described below (corresponding remote control 4 buttons): mode: the effect of switching +, each time you press the effect add +1. Speed: speed adjustment, adjustable speed of 10 class, each time you press the speed add +1 class. Maximum speed when you press the speed back to the slowest speed at the speed of beginning period . Auto: the effect of switching - every time you press the effect of minus -1. Press auto and mode automatically switches to the 300 effect automatically play mode. On / off: power on / off.
these led strips are fun and glowy. There are 24 rgb leds per meter, and you can control each led individually! yes, that's right, this is the digitally-addressable type of led strip. You can set the color of each led's red, green and blue component with 7-bit pwm precision (so 21-bit color per pixel). The leds are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.
