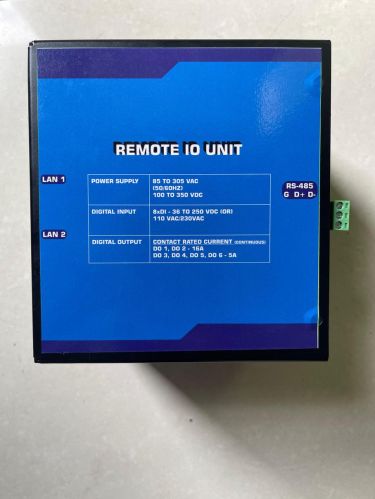

Remote Terminal Unit, Automation Grade : Automatic

₹ 30,000 / Box

ConditionNew
Automation GradeAutomatic
Country of OriginIndia
Application/useindustrial
Supply TypeManufacturer, Exporter, Supplier, Distributor
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 9 Years
Nature of Business Manufacturer
GST No. 33AAECN4059M1Z8

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Application/useindustrial
ConditionNew
Automation GradeAutomatic
Ethernet Port2 No of RJ45 port 10/100 Base-T auto sensing
Environmental TestIEC 60068-2-1 IEC 60068-2-2
Digital OutputDO supports 48VDC/5A or 230VAC/10A or 250VDC/16A or 230VAC/20A (As per Customer Requirement)
Data Rate9600 bps - 115.2 kbps
EnclosureAluminium Body
Weight1.3Kg
LED IndicationsLAN ready, Data transfer, Serial port RX/TX, Power, IO point status, MCU status
Relative Humidity5% - 95% RH non condensing
Operating Temperature-40 C to 85 C
MonitoringWeb HMI based application for Device configuration, DI monitoring and DO control
Fiber Optics(Optional)2 No of FO port Single Mode/Multimode
Serial Port1 No of RS485 port
Aux SupplyOption 1: AC-DC card 85-305VAC (50/60Hz)or 100-430VDC
Physical Layer Isolation1500VAC min as per IEEE802.3/ANSI X3.263
Application ProtocolMODBUS RTU,IEC61850,IEC104
Digital InputDI supports 36-220VDC or 110V/230AC
System ProtocolsTCP/IP, UDP/IP, HTTP, ICMP, ARP
Dimensions (L x W x H)150mm x 160mm x 115mm
Safety TestSafety IEC 60255-27

Remote Terminal Unit is a versatile communication product for smartgrid applications. This product is suited for running in rugged environment with data exchange. Other main feature is the integrated IO capability with ability to transfer field IO to remote location over LAN

Features

24 hardwired digital input signals for status indication(Scalable up to 120 Signals)
6 digital outputs(250VDC/16A) for output commands (Scalable up to 30Signals)
Enabled with smart-grid protocol IEC61850,IEC104,MODBUS
Time synchronization using NTP/SNTP
Device management using Web HMI based application
Remote configuration & software update over the Web HMI based
application Operate as IEC61850 Server, MODBUSGateway(MODBUS RTU to
IEC61850),IEC 104 Slave and Modbus Master/Slave
