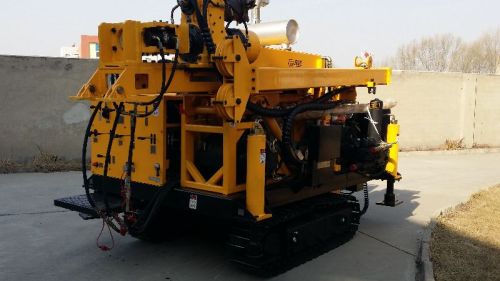

Remote Tramming Control Crawler Core Drilling Rig

Get Latest Price

Brand NamePankow
CertificationISO, CE
ConditionNew
Power TypeDiesel Engine
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Beijing Pankow Technology Co., Ltd

Beijing

View Number

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 2010

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerCrawler Core
Brand NamePankow
CertificationISO, CE
Availability6,400KG
ConditionNew
ApplicationCore Drilling
Power TypeDiesel Engine
Total Carbohydrate12 Months
After-Sales Service ProvidedAvailable
ModelP-500L
EngineCummins4BTA3.9-C110, 82 KW, 2,200 Rpm
Feed Stroke1,800mm
Dimensions4,570×2,000×2,425mm
Mast Length8,600mm
Drilling CapacityNQ 500 meters
Torque1,400 Nm

P-500L drilling rig is specially designed for diamond drilling on ground surface. Track crawler mounted rig facilitates moving around with great convenience. Its portable rig body is applicable for drilling in narrow job site.

MAIN FEATURES :

Track mounted base, hydraulic driven, the control mode is driven by the electric wire which ensures the drillers’ safety.
The inside diameter of the drill head is 97mm, with hydraulic closed and open chuck.
The dump stroke on the mast is 900mm, with hydraulic rams set at the bottom of the mast to touch the ground easily.
Equipped with Main Winch, Wireline Winch, Mud Pump and Mud Mixer.
Equipped with Foot Clamp, with hydraulic open and closed.
Float on the drill head when shackle the chuck.
Fast speed and slow speed for the pushing force on the drill head.
