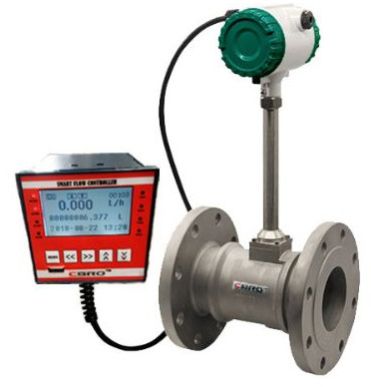

Remote Type Vortex Flow Meter

Remote Wallmounted Vortex Flow Meter is used in numerous branches of industry to measure the volume flow of liquids, gases and steam. Applications in the chemicals and petrochemicals industries, for example, in power generation and heat-supply systems involve widely differing fluids: saturated steam, superheated steam, compressed air, nitrogen, liquefied gases, flue gases, carbon dioxide, fully demineralized water, solvents, heat-transfer oils, boiler feedwater, condensate, etc.

Advantages :-

Vortex flow meter advantages and disadvantages

Vortex flow meter body is robust and universally applicable for liquids, gases and steam,optimized for steam applications.  In gas measurement, vortex flow meter could achieve high accuracy ±0.75%~±1.0% of reading ( gas ±1.0%, liquid ±0.75%); which could use in custody transfer , while the metal tube rotameter or orifice plate usually use for process control. With a variety of signals outputs and selection, such as 4-20mA, pulse with HART or pulse with RS485 are selectable.

In the electronic device of measuring flow, vortex flow meter is the only one could resist wide temperature range up to highest temperature 350℃, digital flow meter highest process temperature.

Application :-

Vortex flow meter applications

Vortex flow meter is professional in measuring non-conductive liquids, gases, saturated and superheated steam, especially for steam measurement trade settlement.

Except work as flow meter, vortex flow meter can also work as heat meter to measure the Gross/net heat of steam and hot water.

Vortex flow meter usually monitor the compressor output and evaluation of Free Air Delivery (FAD)

There has lots of Industrial gases, such as natural gas, nitrogen gas, liquefied gases, flue gases, carbon dioxide etc, all could use vortex flow meter.

In many factories, compressed air monitoring is very important, vortex flow meter also could use for process control.

Besides the different gases measurement, vortex flow meter could also used for light oil or any purified water，such as thermal oils, Desalinated water, demineralized water, RO water, boiler feed water, condensate water etc.

In the Chemicals and petrochemicals industries, there also has lots of gases or liquid could use vortex flow meter for monitoring.

Installation :-

Vortex Flow Meter Installation Requirements

The installation of vortex flow meter has higher requirements, to guarantee the better accuracy and working properly.

Vortex flow meter installation should keep away from the electric motors, big frequency converter, power cable, transformers, etc.

Do not install in the position where there has bends, valves, fittings, pumps etc, which could cause flow disturbances and influence the measurement.

The front straight pipe line and after straight pipe line should follow below suggestion.
