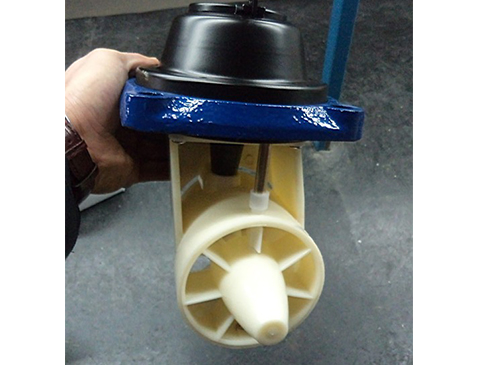

Removable Element Dry Dial Woltmann Water Meter

Removable Element Dry Dial Woltmann Type Cold (Hot) Water Meter
Water Meter Box
Specification:

Item Specification
Operating_condition PN:_1.01.6_Mpa_(1016bar)
The_water_temperature cold_water_up_to_50℃_and_hot_water_up_to_90℃
Standard ISO_4064_Class_B
Material Cast_iron
Size DN40_-_DN600_
Pressure_loss ÃŽ”P25

Application:
To totalize the total volume of water passing through the pipeline.
Features: a magnetic drive, dry dial and helix type water meter with an interchangeable measuring unit. It has the advantages of small resistance, negligible head loss, big capacity, excellent accuracy, high measuring capacity, and long life of service. The measuring unit with sealed indicator offers the meter with very clear reading condition. The meters can be equipped with a kind of remote transmission Device, the pulse generating volume could be 100, 1000 or 10000 literpulse.
Error curve: From qt inclusive up to and including qs is ±2%; From qmin inclusive up to but excluding qt is ±5%.
Packing: plywood case per piece, or carton + pallet.
