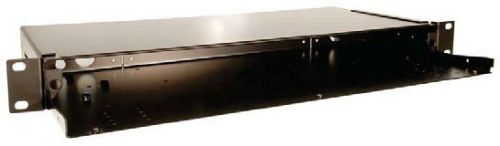

Removable Front Panels Chassis

The Superiortec removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding tray and one front
panel, which accommodates the optical adaptors. The flexibility of the two piece construction allows you to maintain a
stock of the chassis and then attach a suitable front panel as required.
TECHNICAL SPECIFICATIONS

Element                            Characteristic
U Size                                1U (44.4mm)
Width                                 482mm
Depth                                 204mm
Net weight                        2.1kgs
Packaged weight            3kgs
Packaged Dimensions  450mm x 55mm x 260mm
IP Rating                            IP20
Suitable for adaptor type All
Mounting adjustment range    50mm
Cable entry 20mm           2
Cable entry 25mm           2
Material                              Cold Rolled Steel
Meterial thickness           1.2mm
Material coating                Electro Static Powder Coating
Colour                                 Black RAL 9004
                                              Grey RAL 7035
Operating Temprature      -40°c to + 50°c
Compliant to                       RoHS, Reach / SVHC
Designed in accordance with   TIA/EIA 568.C, ISO/IEC 11801, EN 50173,
                                               IEC 60304, IEC 61754, EN 297-1

FEATURES AND BENEFITS

Recessed panel option

No exposed screws
Screen printed for easy labelling
45° working angle
Rear cable entry options
Panel numbers and rack number identification labels
High quality finish, no sharp edges

REMOVABLE FRONT PLATES FEATURES

Up to 48 fibres in 1U
Multiple Adaptor options available
individually labeled ports

ORDERING INFORMATION

FT01R Fiber tray 1U, sliding, can accommodate removable front panels
RP24SCL Removable front panel, loaded with 24 simplex SC adapters
RP24DLCL Removable front panel, loaded with 24 Duplex LC adapters
