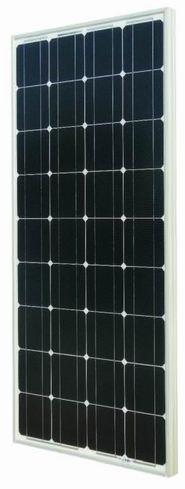

Contact SupplierWe are offering renewable solar panel module.
36 cells mono:
power output pmax w 95 90 85
module efficiency ηm % 14.32 13.56 12.80
voltage at pmax v mpp v 19.0 18.5 18.0
current at pmax impp a 5.0 4.86 4.72
oppen-circuit voltage voc v 23.2 22.6 22.0
max. Static load, front (e.g., snow): 5400pa
max. Static load, back (e.g., wind): 2400pa
dimensions(lwh): 1200mm553mm40mm
weight: 7.5kg
front cover (material thickness): low-iron tempered glass 3.2mm
cell(quantity material dimensions): 36 monocrystalline silicon 125mm x 125mm
frame: anodized aluminum alloy
