Reno Mattress Gabion Mattress

Description
reno mattress gabion mattress made from a hexagonal double twisted wire mesh with a mesh type 6x8. The wire mesh diameter is 2.2 mm. The wire mesh diameter is 2.2 mm.
the possibilities of the reno mattress mesh coating:
•heavy zinc coating
•galfan coating (zn-5%al-mm)
•zinc galfan + pvc coating
application areas:

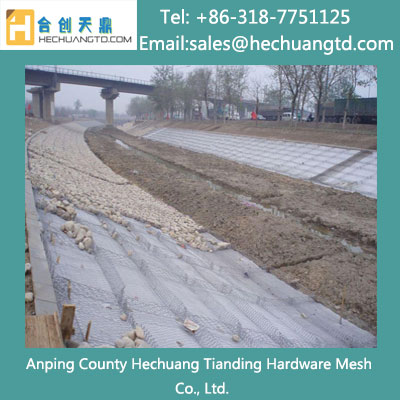

•erosion control
•riverbank and bed control
•erosion control of riverbank and water reservoirs
•landfill recultivation
popular reno mattress specifications:
(special wire gauges and box sizes available on request)
reno mattress, double swisted, five-twisted
mesh opening 60x80mm, 80 x 100 mm, 100x120mm
wire size 2.0mm, 2.2mm, 2.5mm, 2,7 mm, 3.05mm, 3.2mm, 3.4mm,etc.
Tolerance
lenght ± 3%
width ± 5%
height ± 5%
reno mattress materials
heavy and hot dipped galvanized low carbon steel wires, galfan(zn 5%al), zn 10% al, pvc coated
zincgalfan zn 10%al coating
2.2mm2.4mm≥270gsm
2.7mm3.0mm3.4mm≥300gsm
thickness of pvc coating: 0.5mm
why chose hechuang jinding gabions for your projects?
•hechuang jinding is the earliest and largest manufacturer of gabion structures in china.
•member of chinese hydraulic engineering society(ches).
•member of china institute of water resources.
•editor unit of china gabion engineering and technology standard.
•the only one enterprise recommended by china ministry of water resources in the field of gabion structures.
•strictly implement and meet international standard astm standard or bs en standard and pass iso & sgs quality certificate system, 3000hs salt spray test.
