Rental LED Video Curtain Wall, Packaging Type : full color

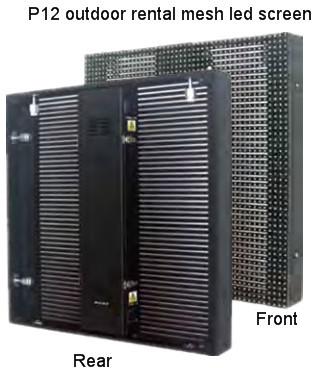

P12 outdoor rental led video curtain wall:
pitchmm p12 p16 p18
density of pixel(dotsm2) 6944 3906 3086
pixel composition 1r1g1b 1r1g1b 1r1g1b
led encapsulation smd 3535 smd 3535 smd 3535
driving method 12 scan static static
view angle ° v140h140 v140h140 v140h140
average power consumptionwm2 350w 420w 350w
max power consumptionwm2 850w 980w 780w
module sizemm 288*288mm 640*20mm 720*12mm
size of cabinetmm 576*576mm 640*640mm 720*720mm
refresh rate hzs 2000 2000 2000
luminance of white balance 4500nits 5000nits 5000nits
weight of cabinet 11kg 10.4kg 12.5kg
operation of environmental temperature°c -20 - 50
ip rating front:ip65 back:ip54
working voltage 110-220 vac+- 10% ; 50~60hz
grey scalecolor displaying colors 16.7m(synchronized)
brightness adjustment
256 levels of each color(manually),
100 levels of each color(automatically)
input signal rf,s-video,rgb,rgbh,yuv,yc&composition, etc
control system linsn(sending card,receiving cards and hubs);nova
average of non-failure life >50,000 hours
life span >100,000hours
functionless dot rate. .
