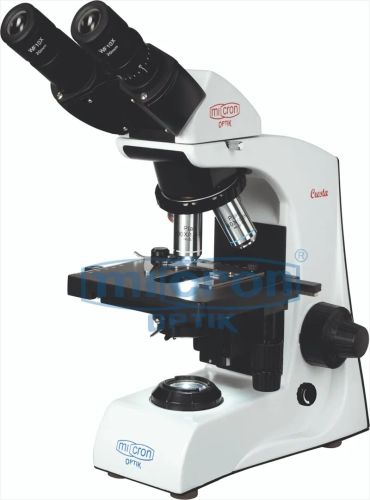

Research Microscope Model Cresta ZS 50 Plus

VIEWING HEAD
AVAILABLE IN MONOCULAR, BINOCULAR AND TRINOCULAR VIEWING HEADS
STANDARD FEATURES
1. Single Mould Rigid Structure with a Window in Arm for easy Carriage
2. Viewing tube: As per Requirement
3. Head Siedentopf Type 30 Degree Inclined and Rotatable at 360 degree.
4. Reversed Inward Quadruple Ball Bearing nose piece with positive click stops.
5. Co-axial Coarse & Fine focusing Graduated to 1Div=.002mm.
6. With Ball Bearing Driven Mechanical stage for X&Y movement of slide.
7. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
8. Built in Illumination LED with intensity control with Inbuilt Battery Backup facility
9. Steple Grey, chemical resistant, back-on finish.
10. Complete with Instruction Manual and dust cover.
11. Duly packed in styrofom packing.
OPTICAL COMBINATION
EYE PIECES: WF 10X/20mm
OBJECTIVES: 4X, 10X, 40X S/L, 100X S/L [Plan Achromatic]
MAGNIFICATION: X40 – X1000
