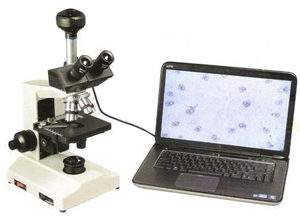

Research Trinocular Microscope

₹ 2 Lakh - ₹ 3 Lakh / Pair

EyepiecesHigh eye point wide field 10x, (f. N. 20) or 15x paired.
Mechanical stageCo-axial low positioned large size double plate type x-y mechanical stage with fine vernier graduation.
Observation headTrinocular observation head inclined at 45°, rotateable through 360°, interpupilary distance adjustment ring 54-74mm, dioptric adjustment ring on the left having adjustable dioptric scale.
ISI MarkedIS:5204-1969
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

EyepiecesHigh eye point wide field 10x, (f. N. 20) or 15x paired.
Observation headTrinocular observation head inclined at 45°, rotateable through 360°, interpupilary distance adjustment ring 54-74mm, dioptric adjustment ring on the left having adjustable dioptric scale.
ISI MarkedIS:5204-1969
NosepieceQuadruple nosepiece revolves on ball bearing.
CondenserAbbe condenser n. A. 1. 25 having aspherical lens, adjustable iris diaphragm.
Mechanical stageCo-axial low positioned large size double plate type x-y mechanical stage with fine vernier graduation.
ObjectivesDin objectives 4x, 10x, 40/45x s. L. 100x oil immersion (s. L. ).
Main bodyAll part die cast to provide long life & good mechanical strength. Coaxial focusing control with ball bearing guide way & large knobs. Pre focusing/ auto focusing lock & tension adjustment ring.
