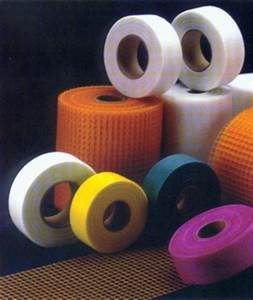

As supplied the banding tape is soft & pliable with a slight amount of tack. During the cure the resin flows & fill voids & air space to produce a homogenous laminate. Finally, the fully cured band is rigid with a hard-smooth resin rich surface & forming a void free homogenous mixture of glass & resin. After application and curing the tape holds the body in radial compression. DC motors & generator by pre-stressing or tensioning the bandings as they are applied. They form a high strength hoop, holding the coils in place, against the large centrifugal forces produced by armature rotation. INTAF Polyglass Tape have been reliably performing this function on all types of DC Machine, from mill motors to locomotive drives for over 10 years.INTAF Polyglass Tape is composed entirely of non-conducting materials. This eliminates insulation & creepage problem which was experienced previously with steel bands. The smooth & glossy cured surface resist direct adhesion & provides excellent arc resistance, minimising the possibility of flashover.
