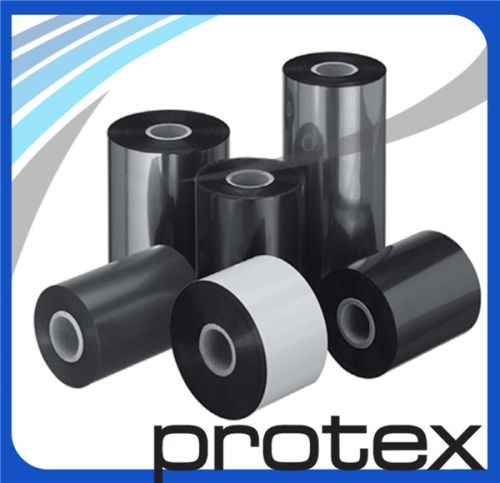

Contact Supplierwe are offering resin barcode thermal ribbon
performance characteristics of waxresin ribbon:
1. wide print latitude to broad range of plastic films, synthetics, and polyesters
2. strong scratching and smear abrasion resistance
3. excellent edge definition and print quality at high dpi and print speeds - up to 8 ips
4. anti-static formulation and back coating to prolong print-head life
recommended applications of waxresin ribbon:
1. applications requiring high scratch and smear resistance
2. medical and pharmaceutical applications - chemical drum applications
3. heat shrink-wrap applications
4. automotive and electronics applications
formulation technical information of waxresin ribbon:
1. base film thickness 4.5 +- .3 micron
2. ribbon thickness 6.7 +- .5 micron
3. printing density > 1.80 macbeth densitometer
4. transmission density > 1.00 macbeth densitometer
5. sensitivity 16mjmm2
6. recommended maximum print speed 8 inches(203mm) per second
recommended media substrates of waxresin ribbon:
coated papers, synthetic papers, films (pvc, pet), and other thermal transfer paper, tag stocks
