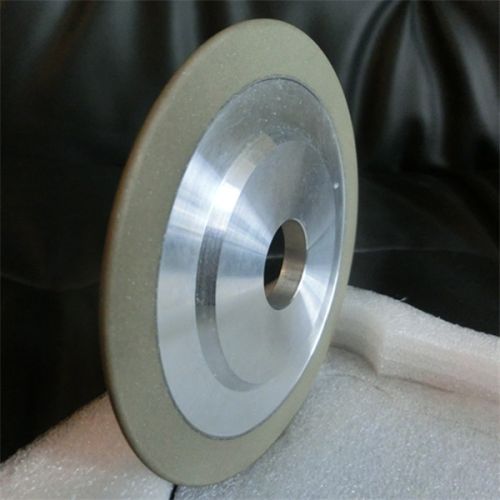

Resin Bond Diamond Grinding Wheel For Carbide Tools

we are offering resin bond diamond grinding wheel for carbide tools.
brand: moresuperhard
bonding agent: resin bond
type: grinding wheel, polishing wheel, grooving wheel, cutting wheel
type code: 1a1, 1v1, 1ee1, 1ff1, 3a1, 11a2, 6a9, 14a1,14a1r,11v9, 11c9, 4a2, 6a1,6a2, 12a2, 9a3, 1f1,12v2, 1l1, 14ee1, 4b1, 14e1, 4a2p, 11b2, 6a2t, 11v2, 9a1, 1a1r, 1f1, 1a8, 9a1, 9a1b,3k1, 1a1w, 4v2, 1a3, 1a2t, 1a2, 12c9
material: diamond, cbn
size: d. 25-500mm; t. 5-40mm; h. 10-127mm.
line speed: 35~80 (ms)
grit: 80#~5000# (d251-d1)
features of resin diamond grinding wheel:
the resin bond products have the features of good self-sharpening, sharp cutting, and high efficiency, low roughness of work piece surface, few heat generating and without burning workpiece. they are suitable for high efficiency and precision grinding of most workpieces.
application of resin diamond grinding wheel:
resin bond diamond products are mainly used for machining tungsten carbide, ceramic materials, magnetic materials, silicon materials, thermal spraying alloy materials and so on.
packing: carton box with foam box. (gift package is available)
moq: 2 pieces
delivery time: 7-15 days
sample: available
payment term: tt, paypal, western union,
note: other spec. can be made according to customers’ request.
