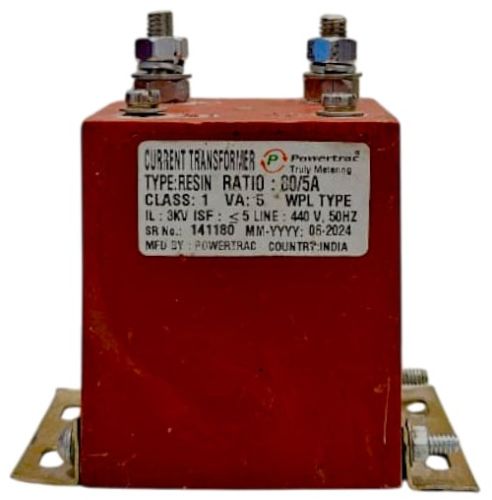

Resin Cast Wpl Current Transformer

Get Latest Price

MOQ20 Piece
Frequency50 Hz ± 5%
StandardIS: 2705 (Part I–IV) / IEC 61869-2 (CT), IS: 1248 / IEC 60051 (Ammeter)
TypeWPL Current Transformer, Resin Cast
Country of OriginIndia
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Powertrac Meters and Transformers

Mansarovar, Jaipur, Rajasthan

View Number

Member Since 8 Years
Nature of Business Manufacturer
GST No. 08AASHP7571F1ZJ

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Country of OriginIndia
TypeWPL Current Transformer, Resin Cast
StandardIS: 2705 (Part I–IV) / IEC 61869-2 (CT), IS: 1248 / IEC 60051 (Ammeter)
System Voltage415 V (LT Application, CT), 230 V AC (Ammeter)
CT Ratio5+5 / 5 A (typical)
Frequency50 Hz ± 5%
CoreSingle Core (CT)
ConstructionResin Cast, robust insulation (CT), Polycarbonate / Flame-retardant panel (Ammeter)
Short Time CurrentAs per IS: 2705 (CT)
Instrument Security Factorq≤ 5 (CT)
Service ConditionsIndoor, suitable for tropical climate
MountingPanel / Base mounting (CT), Panel flush mount (Ammeter)
Dimensions (L × W × H)90 × 80 × 50 mm (CT), 96×96 mm (Ammeter)
Continuous Thermal Current1.2 × rated current (CT)
TerminalsElectrolytic copper, screw-type with terminal cover (CT), Screw-type (Ammeter)
MarkingsAs per IS: 2705 / IS 1248 (Ratio, VA, Class, Serial No., Year, IS marking)
Burden / Meter Rating5 VA (CT), 96×96 mm panel mount (Ammeter)
Routine & Type TestsAs per IS: 2705 / IS 1248 (Polarity, Ratio, Burden, Accuracy, Dielectric, etc.)
Ambient Temperature–10°C to +55°C
Insulation ClassClass E / B (CT), As per IS 1248 (Ammeter)
Accuracy ClassClass 1.0 (CT), Class 1.0 (Ammeter)

We are a leading Manufacturer, Exporter, Supplier, and Trader offering the Resin Cast WPL Current Transformer originating from India. This WPL Current Transformer complies with IS: 2705 (Part I–IV) / IEC 61869-2 standards, designed for 415V system voltage in LT applications. Featuring a CT ratio of 5+5 / 5A, single-core construction, and Class 1.0 accuracy, it ensures precise measurements with a 5VA burden. The compact dimensions of 90x80x50mm make it ideal for various applications. Trust this high-quality product for reliable performance in your electrical systems.
