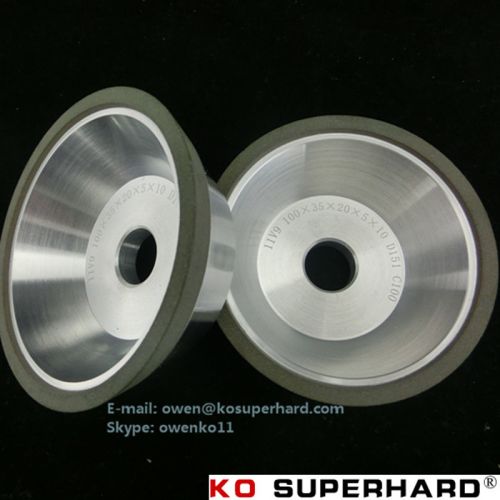

Resin Diamond Grinding Wheel Customized, Brand Name : KO

We are offering resin diamond grinding wheel.
Resin vitrified metal electroplated bond wheel, diamond cutting wheels, blade sharpening wheel, grinding wheels for circular saw blade, resin bond double side wheel, diamond sharpener, superhard abrasive tools, diamond grinding wheels
brand: ko
type: flat grinding wheel
material: diamond
diameter: 6-900mm
line speed: 35~80ms
grit: 40#~w3.5 (mesh)
application: tungsten carbide, pcd, pcbn, ceramic, cermet, glass
binding agent: resin
certification: iso 9001:2000
moq: 5 pieces
we are able to provide resin bond grinding wheels according to customers different requirements. The diameter range is 6-900mm; the thickness range is 0.07-520mm; the grit size range is 4050-w3.5. We can also design and make nonstandard grinding wheels according to customers requirements.
Features:
the resin bond products have the features of good self-sharpening, sharp cutting, and high efficiency, low roughness of work piece surface, few heat generating and without burning workpiece. They are suitable for high efficiency and precision grinding of most workpieces.
Application:
resin bond diamond products: mainly used for machining tungsten carbide, ceramic materials, magnetic materials, silicon materials, thermal spraying alloy materials and so on.
suitable for cnc grinding machine:
ewag, walter, vollmer, agathon, wendt, etc.
please provide us details when you order, for example,
product needed: resin diamond grinding wheel
1) diameter (25, 40,100,200,300…750mm)
2) holestate bore dimension
3) thickness (456810…405060mm)
4) shape (1a1 1a1r1a81a1w1l11f16a212a211v94a114a1…)
5) grit size (1618, 1820…4045,80100…325400. In gb or iso standard)
6) other request.
