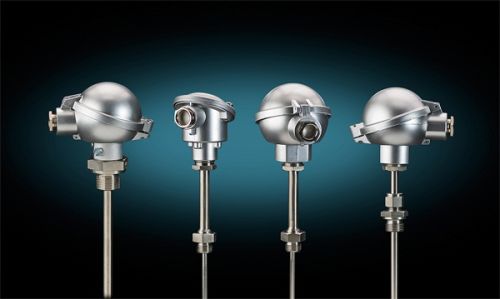

Resistance Temperature Detectors For Industrial Use

Platinum resistance thermometer (RTD) in accordance with DIN EN 60751 (class A or B) and thermocouples (TC) in accordance with DIN EN 60584 (class 1 or 2) for industrial use comprise a measuring insert within housing protected against corrosion. These housings come in a wide range of designs depending on the installation and available space, with screw connection, protective tube with screw connection, neck tube with screw connection or flange connection. The wiring of the measuring insert is often incorporated into a connection head "Form B" or "Form BUZ", from which the thermometer can be connected via a cable to an external electrical measuring device. The measuring insert and stainless steel jacket is an easily replaceable unit, which normally includes a ceramic connection base.
RTD designs: Single, dual or triple - PT100, PT20, PT1000 etc. in 2- , 3 or 4-wire designs.
TC designs: Single, dual or triple couples (type: T , E , J , K or N)
This resistance thermometer (RTD) and thermocouples (TC) are usable by default within a temperature range of -200 °C … +550 °C.
A test report in accordance with EN10204 3.1 is available on request for all the sensors in our range, also including, where applicable, an inspection and test plan (IT) or a certificate of compliance in accordance with EN 10204 2.1
