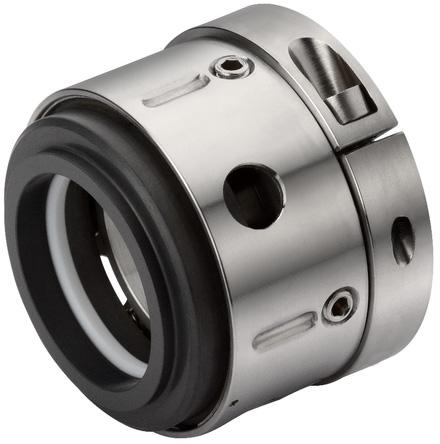

SS304 Coated Polyurethane Reverse Balanced Seal, For Arrest Leak, Overall Dimension (LXBXH) : 390X170X360mm

Seal Type SSI-26 Mechanical Seal are Externally Mounted Reverse Balanced Design Seal having ‘O’ Ring as a Secondary Sealing member. Secondary Sealing member can be changed as per Chemical Compatibility. All metal components including springs are Isolated from the Sealed, Aggressive Medium. Simple checkout method function and cleaning possibility as this Mechanical Seal located easily access outside the pump. Especially design Clamp Ring eliminate Slipping on Shaft.

• Single Acting Mechanical Seal.
• Dual Directional Mechanical Seal.
• Outside Mounted Mechanical Seal.
• Reverse Balanced Design.
• Multi Spring design Mechanical Seal .

• Seal Ring Faces : Carbon and SiC
• Seat Faces : Ceramic and SiC
• Elastomer : Viton, EPDM, TTV, FEP and FFKM
• MOC : SS 316, Hast -C and Alloy – 20

• Shaft Dia. : 16mm to 70mm
• Pressure : Up to 8 bar
• Temperature : Upto 120°C
• Speed: 3000 r.p.m.
