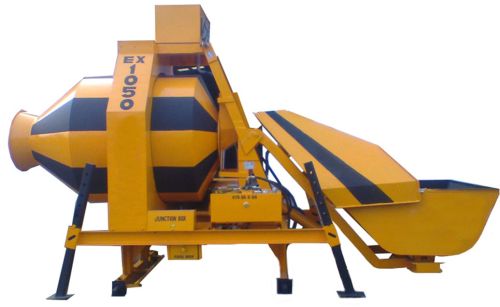

Reverse Drum Mixer Manufacturer in Cuttack Odisha India

Reverse Drum Mixer, Color : Yellow

Sold By : Pathak Machines Industries

Product Specifications

ApplicationMixing Concrete And Mortar
Number Of FlowerConcrete Mixer
DimensionsStandard Dimensions Based On Capacity
Power SourceElectric Motor Or Gasoline Engine
MaterialSteel
CapacityTypically 2-5 Cubic Feet
Supply TypeManufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Reversible Drum Mixture Machine

Parameter	EX 850-E	EX 1050-E	EX 1400-E
Hopper Capacity (Dry)	850 Kg	1100 Kg	1400 Kg
Batch Capacity (Wet)	0.4 m³	0.5 m³	0.66m³ & 0.4m³
Machine Output/hour	9 m³/hr	15 m³/hr	18 m³/hr
Power	10 HP (7.5 Kw) Elec. Motor	15 HP (7.5 Kw) Elec. Motor	15 HP (11 KW) Geared Motor
Weighing Type	3 Bin	3 Bin	3 Bin
Water Dozing	Digital	Digital	Digital
Water Tank Capacity	150 Liters	200 Liters	250 Liters
Weighing System	Load Cell Based Weighing System with Digital Display	Load Cell Based Weighing System with Digital Display	Load Cell Based Weighing System with Digital Display
Hydraulic Pump	19 lpm @ 170 bar	19 lpm @ 200 bar	27 lpm @ 200 bar
Gear Ring & Roller	Accurately Machined with Gear Cutting Operation Supported by Heavy Duty Guide Rollers	Accurately Machined with Gear Cutting Operation Supported by Heavy Duty Guide Rollers	Accurately Machined with Gear Cutting Operation Supported by Heavy Duty Guide Rollers
Wheels	Pneumatic Wheels (4 Nos)	Pneumatic Wheels (4 Nos)	Pneumatic Wheels (4 Nos)
Wheel Size	6” × 16”	6” × 16”	7” × 19”
Jack Leveling	Pin Type (4 Nos.)	Pin Type (4 Nos.)	Pin Type (4 Nos.)
Dimensions (L × W × H)	4000 × 1650 × 2700 mm	4690 × 1890 × 2900 mm	4816 × 2000 × 3100 mm
Weight (Approx)	1830 Kg	2280 Kg	2950 Kg
Special Attachment	Special Design Hopper Vibrator & Centralized Lubricating System	Special Design Hopper Vibrator & Centralized Lubricating System	Special Design Hopper Vibrator & Centralized Lubricating System
Optional Features	Printing System with USB, Admixture Dozing, With Conveyor System	Printing System with USB, Admixture Dozing, With Conveyor System	Printing System with USB, Admixture Dozing, With Conveyor System

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Manufacturer Of under Crank Mechanical Shearing Machine, Portable Cnc Plasma / Oxyfuel Cutting Machine, Over Crank Mechanical Shearing Machine, Extra Heavy Duty Lathe Machine, Heavy Duty Slotting Machine, Hydraulic Press Brake Machine, Planning Machine, Radial Drilling Machine, Surface Grinding Machine, Universal Milling Machine, Crankshaft Grinder, Horizontal Line Boring Machine, Rice Whitener Machine, Paddy Pre Cleaner, Valve Refacer Machine.
