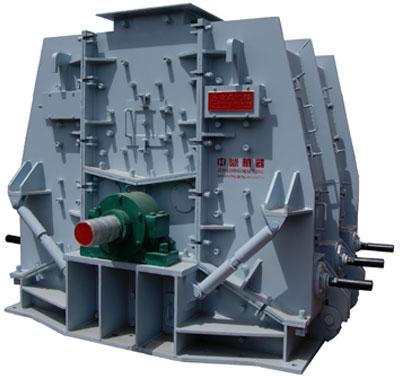

Reversible Impact Hammer Crusher, Power : 220-280 (KW)

We are offering reversible impact hammer crusher.
1.high efficiency
2.passed certificateiso9001:2008 ccc
3.ce
1. Brief introduction of reversible impact hammer crusher
rpcfk series of reversible impact hammer crusher has advantages of both hammer crusher and impact crusher. It can break brittle materials of medium hardness, such as coking coal, anthracite, coal used for fluidized bed boiler of heat power plant, coal gangue, gypsum, alum, etc
2. Working principle of reversible impact hammer crusher
materials enter crushing chamber from feeding hopper, and are impacted to wear-resisting toothed plates on inlet by high speed hammers, this is the first crushing process. crushed materials with almost the same size enter the main crushing chamber for second crushing. materials from main crushing chamber are impacted between toothed plates and hammers for many times, and discharged from the outlet. final product size can be controlled by adjusting space between rotor and impact plates.
3. Types of reversible impact hammer crusher:
we have various of reversible impact hammer crusher,such as pcfk-1212, pcfk-1214, pcfk-1216, pcfk-1414, pcfk-1416, pcfk-1616, pcfk-1618, pcfk-1818etc. In order to give you a responsible quotation, you can inform us the following information:
1). what's the material you are going to deal with?
2) what's the granularity of the material?
3) what's the granularity of the final products are you going to achieve?
4) what's the producing capacity you are going to achieve?
our engineers will suggest you the most suitable one for you according to your information.
technical parameters of reversible impact hammer crusher
model
rotor
diameter
(mm)
rotor length
(mm)
feeding size (mm)
discharge size(mm)
capacity
(t/h)
rotary speed
(r/min)
power
(kw)
weight
(t)
100%
93%
pcfk-1212
1200
1200
≤80
0-8
0-3
100-180
740
220-280
19
pcfk-1214
1200
1400
≤80
0-8
0-3
120-220
740
220-280
21
pcfk-1216
1200
1600
≤80
0-8
0-3
150-250
740
315-355
24
pcfk-1414
1400
1400
≤80
0-8
0-3
220-300
740
355-450
25
pcfk-1416
1400
1600
≤80
0-8
0-3
250-330
740
355-560
30
pcfk-1616
1600
1600
≤80
0-8
0-3
280-350
740
450-560
32
pcfk-1618
1600
1800
≤80
0-8
0-3
300-400
740
560-710
37
pcfk-1818
1800
1800
≤80
0-8
0-3
400-450
740
710-800
45
pcfk-1820
1800
2000
≤80
0-8
0-3
450-500
740
800-900
50
pcfk-1825
1800
2500
≤80
0-8
0-3
500-550
740
900-1000
60
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
