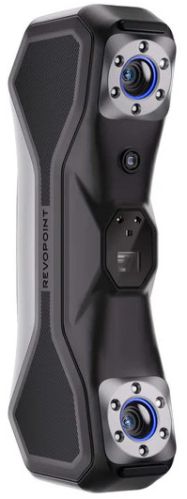

Revopoint MetroX Advanced Edition – High-Precision 3D Scanner

The Revopoint MetroX Advanced Edition is a professional-grade 3D scanner that combines blue laser scanning and blue structured light technology to deliver highly accurate, detailed scans. Designed for precision applications, MetroX offers up to 0.01 mm accuracy and supports various scanning modes, including feature, marker, and turntable-assisted scanning. It’s ideal for capturing small to medium-sized objects with fine surface details, suitable for reverse engineering, design, prototyping, and digital archiving.

The Advanced Edition includes an auto turntable, calibration board, tripod, and marker kits, providing a complete scanning solution out of the box. With flexible operation via USB and software compatibility with standard formats, it ensures a smooth workflow for both professionals and advanced hobbyists.

Specifications (SPECTION)

• Scanning Technology: Blue Laser (7 or 14 lines), Structured Blue Light (62-line projection)

• Accuracy: Up to 0.01 mm precision

• Volumetric Accuracy: 0.025 mm + 0.05 mm per meter

• Capture Speed: Up to 800,000 points/sec (laser), 7 million points/sec (structured light)

• Point Distance: As low as 0.05 mm

• Scan Area (Single Frame):

  • 160 × 70 mm @ 200 mm distance

  • 320 × 215 mm @ 400 mm distance

• Supported Tracking Modes: Feature, Marker, Global Marker

• Color Capture: 2 MP RGB camera (used in auto-turntable mode)

• Connectivity: USB Type-C for scanner, Wi-Fi app for turntable control

• Compatible File Formats: STL, OBJ, PLY, ASC, 3MF, GLTF, FBX

• Software: Compatible with Revopoint Revo Scan, supports Windows/macOS

• System Requirements:

  • Recommended: 8-core CPU, 32 GB RAM, NVIDIA RTX 30/40 series GPU

• Device Dimensions: 209 × 88 × 44 mm

• Weight: Approx. 508 g

• Scan Volume Range: From ~10 × 10 × 10 mm to ~1 × 1 × 1 m

• Accessories Included:

  • Dual-axis auto turntable

  • Tripod and stand

  • Calibration board

  • Magnetic marker blocks

  • Carrying case and sample object
