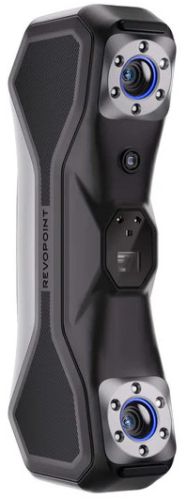

Plastic Revopoint Metrox Standard Edition 3d Scanner

Revopoint MetroX Standard Edition – Description

The Revopoint MetroX Standard Edition is a high-precision 3D scanner that utilizes both blue multi-line laser scanning and blue structured light technology to deliver accurate and detailed 3D models. It is designed for capturing small to medium-sized objects with a precision of up to 0.01 mm, making it ideal for applications such as reverse engineering, prototyping, industrial design, and digital preservation.

This scanner offers flexible operation modes, allowing users to choose between laser and structured light scanning based on surface type and detail level. The Standard Edition includes essential accessories such as a tripod, dual-axis turntable, calibration board, and marker kits. It is compatible with popular 3D software and supports file formats like STL, OBJ, and PLY for easy integration into various workflows.

• Scanning Technology: Blue Laser (7 or 14 lines) and Blue Structured Light (62-line projection)

• Precision (Repeatability): Up to 0.01 mm

• Accuracy: Up to 0.03 mm per single scan

• Volumetric Accuracy: 0.03 mm + 0.1 mm per meter

• Point Distance (Resolution): As low as 0.05 mm

• Working Distance: 200 mm – 400 mm

• Single Capture Area:

  • 160 × 70 mm at 200 mm distance

  • 320 × 215 mm at 400 mm distance

• Scan Speed:

  • Laser Mode: Up to 800,000 points/sec

  • Structured Light Mode: Up to 7,000,000 points/sec

• Tracking Modes: Feature, Marker, Global Marker

• Color Scanning: Supported in auto-turntable mode via 2 MP RGB camera

• Connectivity: USB Type-C

• File Formats Supported: STL, OBJ, PLY, ASC, 3MF, GLTF, FBX

• System Requirements:

  • Windows 10/11 (64-bit), macOS 11+

  • Recommended: 8-core CPU, 32 GB RAM, RTX 30/40 series GPU

• Dimensions: 209 × 88 × 44 mm

• Weight: Approx. 508 g

• Scan Volume Range: From approximately 10 × 10 × 10 mm up to 1 × 1 × 1 m

• Revopoint MetroX 3D Scanner

• Tripod and holder

• Dual-axis auto turntable

• Calibration board

• 500 marker targets

• Sample object (bust)

• USB and power cables

• Carrying case

• Quick start guide and warranty card
