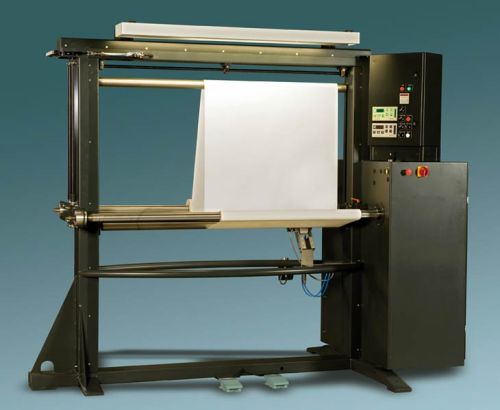

Rewinding Machine

Rewinding Machine is a unique, compact machine for rewinding and inspecting paper-based wall covering. The unique floor space saving design of Rewinding Machine combines high flexibility and fast operation with high quality edge and torque control. We are a noted Exporter and Supplier of Rewinding Machine in UAE.
Salient Features

• Material width up to 150 cm (other dimensions on request)
• Maximum roll diameter 50 cm (other dimensions on request)
• Maximum roll weight 40 kg
• Fixed, pneumatic controlled winding off and rolling up shaft for quick and easy roll changes
• Adjustable electrical brake with programmable torque control
• Accurate, servo controlled edge control
• Reverse motor
• Large inspection field (60 cm) with pneumatic controlled roller to reduce the inspection field during threading of the material
• Overhead lighting
• Length measuring system with programmable control
• Adjustable speed
• Machine dimensions (l x w x h) : fabric_width+130 x 150 x 230 cm
• Power supply 208230v, 5060 Hz, 3 kw, 6 bar air supply.
