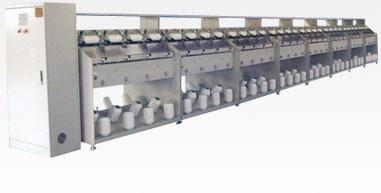

Rewinding Machine GV800-Hongtu Machinery

Features
1. Double sides design can save installation space.
2. Stepless speed regulation by frequency inverter can save electricity.
3. High automation design can save labors. One operator can easily manage several machines.
4. Shorten the delivery time for small quantity order of Spandex covered yarn by use of this rewinding machine.
5. The Spandex covered yarn after rewinding without defect of overlaps pattern is of more stable unwinding tension.
6. Accurate winding mechanism of bi-conical package with advanced anti-convex and overlaps pattern device ensures excellent package formation.
7. Energy saving design and automatic oiling system minimize the operation cost and upgrade the product quality and standard.
Main Specifications
1. Denier range: Suitable for process of 20/12 ~ 40/70 mechanical or air covered yarn of Spandex/nylonfilament
2.Mechanical speed: 800 m/min
3.Process speed: 450-650 m/min
4.Package size: Winding width 180-205mm for winding core length 220-230mm
Package ends semi-conical angle 42°, winding crossing angle 22°-28° adjustabl
5.The installed power: 165W per spindle
6.Machine overall measurement (72 spindles): 14450 (L) x 1120 (W) x 1400 (H) mm (standard option)
