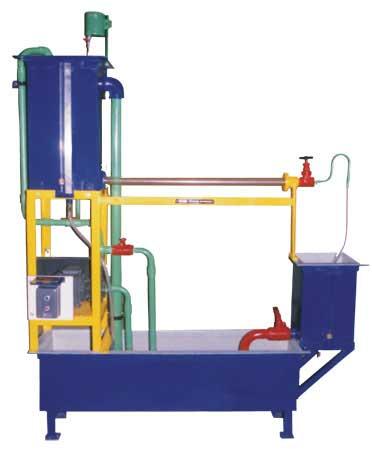

We are offering reynolds apparatus. reynold's apparatus is designed for determining the reynold’s number. The apparatus consists of a glass tube with one end having bell mouth entrance; connected to a constant headwater tank, at the other end a valve is provided to vary the flow rate. The tank is of sufficient capacity to store water; a capillary tube is introduced centrally in the bell mouth for feeding dye from a small container placed at the top of tank, through polythene tubing. By varying the rate of flow, the reynolds number (re) is changed; this also changes the type of flow. Visual observation of dye (thread) will indicate the type of flow, which can be confirmed from the reynolds number computed. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line. Flow rate of water is measured with the help of measuring cylinder and stop watch. objectives

• to determine the reynolds number and hence the type of flow either laminar or turbulent
• to study transition zone

utilities required

• electric supply 0.5 kw, 220v ac, single phase
• water supply tap water connection â½â€ bsp distilled water @ 60 liters (optional)
• floor area with drain facility

» technical detail
product reynold's apparatus tube material borosilicate glass dye vessel material stainless steel, suitable capacity capillary tube material copper/stainless steel constant head water tank capacity 25 ltrs water circulation fhp pump, tullu/champion make. flow measurement using measuring cylinder. sump tank capacity 85 ltrs stop watch electronic control panel on/off switch, mains indicator, etc.
