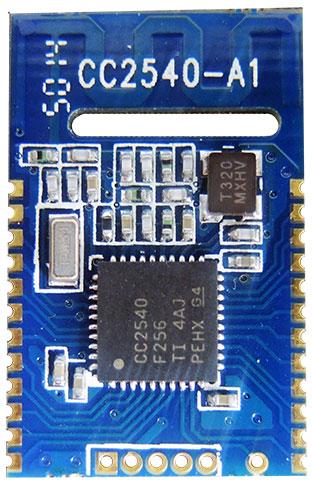

RF-CC2540 BLE Modules

Ble modules rf-cc2540(t)a ble modules rf modules supplier bluetooth modules function: the module can work in bridge mode (transparent transmission mode) and direct-drive mode. After being started, the module can broadcast automatically. Smart phones with specific application running will scan and pair with it. When connection success, the smart phone can monitor and control the module through bluetooth protocol. Product details: in bridge mode, user "s mcu can communicate with the mobile device in two-way through module"s uart. Users can also manage and control certain communication parameters through specific uart at commands. The detailed meaning of the user data is defined by the up-application. Mobile devices can write to the module through the app. And the data written will be sent to the user�s mcu through uart. Then the module will transmit the data package from user mcu to the mobile devices automatically. In the development under this mode, the user need to undertake the code design for mcu code, and the code design of app for smart mobile terminals. In direct-drive mode, users take simple periphery expansion to the module. And app drives the module directly through ble protocol, to implement the monitoring and control of the module by smart mobile devices.  in this mode, users only need to do the code design for smart mobile terminals. Features easy to use, no need of any experience of bluetooth protocol stack application 2.uart design for user interface, full-duplex bi-directional communication, and supporting the minimum baud rate of 4800 bps; 3.supporting bridge mode (usart transparent transmission), and direct-drive mode (no additional mcu needed); 4.default connection interval of 20ms, which makes quick connection; 5.supporting software reset module by at command, and access to the mac address;
