RF Co-axial Cables

RF Co-axial cables are manufactured as per JSS 6145 MIL – DTL – 17 H Specification.
These cables are designed for low loss, stable operation from the relatively low frequencies through the higher frequencies in the microwave and radar regions of the frequency spectrum. Cables may also be used as circuit elements, delay lines or impedance matching device.

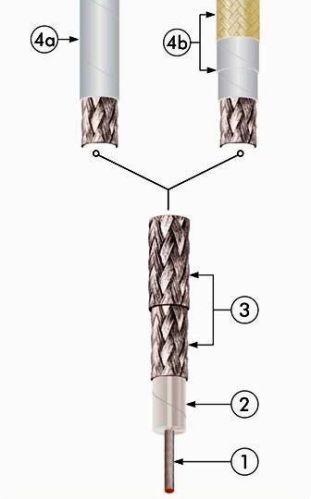

Construction :
1. Solid or standard conductor made up of Silver plated copper clad steel (SCCS) or Silver plated copper (SPC)
2. Dielectric layer of spiral wrapped & fused PTFF Tape
3. Outer conductor made up of Single or Double briad of silver plated copper
4. An overall jacket of:
a. Jacket of wrapped & sintered PTFE Tape
b. One or two wraps of PTFE Tape. One or more glass fibre braids and coated with special high temperature
