RF Connector

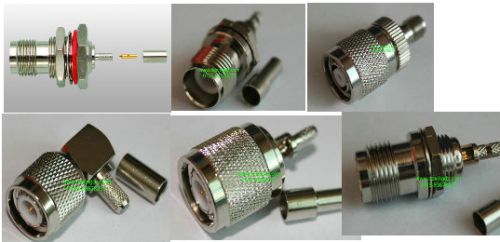

We offer rf connector (tnc-c-jw3) / rf coaxial connector
the tnc series products are a kind of whorl joining, it has work width frequently, join reliable, such characteristics as ant-vibration performance is good, suitable for radio equipment and instrument and join the cable to use.
technical characteristics
temp. Range　　　　　　　　-65～+165° c (pe cable -40～+85° c)
vibration 　　　　　　　　　　 mil-std-202, method 213
impedance　　　　　　　　 50ω
frequency range　　　　　dc～11ghz
working voltage　　　　　500v max
withstand voltage　　　　 1500v rms
contact resistance
　　 center contact　　　　 ≤ 1.5 mω
　　 outer contact　　　　　≤ 1 mω
insulation resistance　　≥ 5000 mω
vswr straight　　 ≤ 1.22
　　 right angle　≤ 1.30
durability(mating) 　　　　≥ 500cycles
material & plating
shell 　　　　　　　brass 　　　　　nickel plated
contact pin 　　　　 brass 　　　　　gold or silver plated
socket 　　　　　　beryllium 　　　 gold or silver plated
elastic contact 　　 beryllium　　　 gold plated
insulator 　　　　　ptfe
crimping suite 　　 copper alloy　　 nickel plated
o-ring sealing 　　　6146 silastic
applicable standard
　　mil-c-39012;
　　cecc 22200;
　　iec 60169-17.
