Contact SupplierWe Offer Cable rf connector.

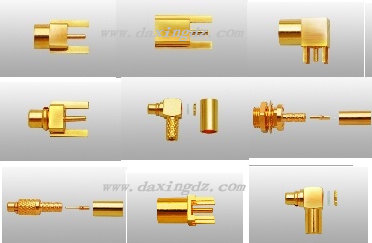

mmcx radio frequency joining device is a kind of microminiaturized product smaller than mcx. It is small, light, joins convenient and reliable. Use for to system volume, serious to have small-scale communication, network equipment that require join the coaxial cable of the radio frequency extensively.
mmcx technical characteristics
temp.range         -55~+155°c
impedance         50ω
frequency range      dc~6ghz
working voltage      170v max
withstand voltage      500v rms
contact resistance
   center contact      ≤ 5 mω
   outer contact      ≤ 2.5 mω
insulation resistance   ≥ 1000 mω
vswr straight    ≤ 1.15
   right angle          ≤ 1.25
durability(mating)      ≥500cycles
mmcx material & plating
shell        brass              gold plated
elastic contact   beryllium            gold plated
inner conductor    beryllium or tin brass   gold plated
insulator       ptfe
crimping suite  copper alloy nickel or gold plated
o-ring sealing     6146 silastic
mmcx applicable standard
  cecc      22340
connectors for flexible cable
