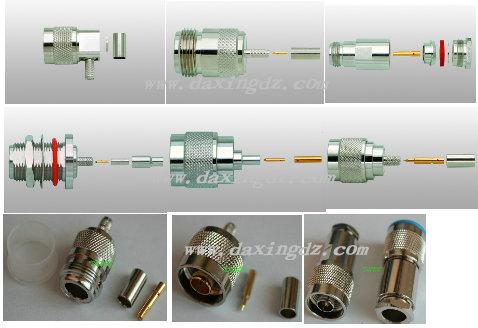

We Offer Rf connector/rf coaxial connector.
n products join by one whorl, it has the characteristic of reliable and strong ant-viberation nature,machinery and electric performance finely.it is used in vibration and environment abominable radio equipment of terms and instrument and ground launch system join the coaxial cable of the radio frequency extensively.
temp. Range: -65~+165 ℃ (pe cable -55~+85℃)
vibration: mil-std-202,method 213
impedance: 50ohm
frequency range: dc-11ghz
working voltage: 1000v max
withstand voltage: 2500v rms
contact resistance:
center contact ≤ 1mohm
outer contact ≤ 1mohm
meterial & plating:
shell: brass nikel plated
contact pin: brass gold plated
socket: beryllium or tin brass gold plated
elastic contact: beryllium gold plated
insulator: ptfe
crimping suite: copper alloy gold or nikel plated
o-ring sealing: 6146 silastic
applicable standard:
mil-c-39012
cecc 22210
iec 60169-16
