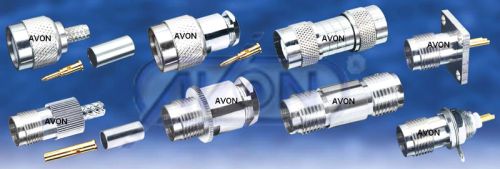

Female RF Microwave Coaxial S Connector, for Electrical Devices, Certification : CE Certified

Listing ID #1253570

Get Latest Price

TypeTNC Series
MaterialStainless Steel
CertificationCE Certified
ApplicationElectrical Devices
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Type TNC Series
Material Stainless Steel
Certification CE Certified
Application Electrical Devices
Color Silver
Feature Easy To Connect, Electrical Porcelain, Four Times Stronger, Proper Working, Shocked Proof
Connection Type Female, Male
Warranty 1year
Current Type AC, DC
Puncture Voltage 0-50Kw, 100-250Kw

RF Microwave Coaxial S Connector are miniature connectors that are similar to the RF Microwave Coaxial S Connector, but use a threaded coupling arrangement. The stability of the threaded coupling allows the connector to be used up to 11 Ghz and provides improved resistance to adverse environments including vibration, moisture, corrosion and thermal variations. These connectors are manufactured to MIL-PRF-39012 requirements.
Typical applications include mobile communications, avionics and antenna ports for wireless base units. Reverse Polarity designs available for FCC Part 15.
Note : Reverse Polarity Connectors are available on special order.

Interface Dimensions

Male

Letter	Millimeters (Inches)
Letter	Minimum	Maximum
A	2.06(.081)	2.21(.087)
B	1.32(.052)	1.37(.054)
C	4.83(.190)	-
D	Slotted and Flared To Meet Electrical And Mechanical Requirements
E	11.18(.440)	-
F	0.15(.006)	-
G	-	1.98(.078)
H	5.28(.208)	5.79(.228)
I	5.33(.210)	-
J	0.08(.003)	1.02(.040)
K	1.60(.063)	-
L	3.96(.156)	-
M	1.98(.078)	-

Female

Letter	Millimeters (Inches)
Letter	Minimum	Maximum
A	-	4.72(.186)
B	8.10(.319)	8.15(.321)
C	8.31(.327)	8.46(.333)
D	9.60(.378)	9.68(.381)
E	1.73(.068)	2.24(.088)
F	8.31(.327)	8.51(.335)
G	10.52(.414)	-
H	4.75(.187)	-
I	-	0.15(.006)
J	4.72(.186)	5.23(.206)
K	4.95(.195)	-
L	4.78(.188)	5.28(.208)

Specifications

Electrical
mpedance	50 ohm 75 ohm
Frequency Range	0 to 11.0 GHz 0 to 1.0 GHz
VSWR	Straight : 1.3 max ; Right Angle : 1.35 max
Working Voltage	500 volts rms max at sea level
Dielectric Withstanding Voltage	1,500 volts rms max at sea level
Contact Resistance	center contact=1.5 Milliohms max outer contact=1.0 Milliohms max
Insertion Loss	0.2 dB max @ 3 GHz
Insulation Resistance	5,000 Megohms min
Mechanical & Environmental
Mating	7/16"-28 threaded coupling
Cable Retention	RG-58,141,142,223 →40 lbs min RG-59,62A,210→40 lbs min RG-174,188,316 →20 lbs min
Durability	500 matings
Coupling Nut Retention	100 lbs min
Temperature Range	-65-C to 165-C
Vibration	MIL-STD-202 Method 204 Test Cond. B.
Salt Spray	MIL-STD-202 Method 101 Test Cond. B.
Thermal shock	MIL-STD-202 Method 107 Test Cond. B.

Material

Type	Material	Plating
Connector Body	Brass	Nickel or Silver
Center Contact	Male: BrassFemale: Brass,Phosphor Bronze or Beryllium Copper	Gold
Insulation	Teflon or Delrin	None
Gasket	Silicone Rubber, Rubber	None
Crimp Ferule	Annealed Copper	Nickel or Silver

Download Detail File : Click Here

Reverse Polarity TNC

Note : In keeping on going product improvement, we reserve right to make product changes at any time without notice.

Download Detail File : Click Here
