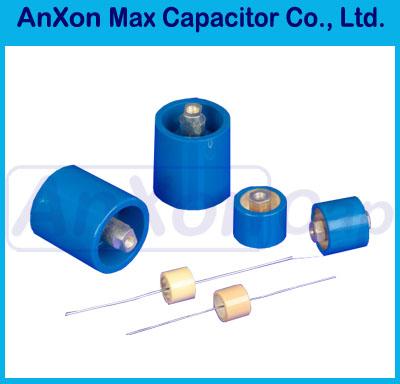

RF Power Barrel / Doorknob Capacitors

We are offering rf power barrel / doorknob capacitors. China supplier of ht rf power barrel ceramic capacitor, manufacturer supply rf barrel doorknob capacitor,
rated voltage (v): 7.5kv to 25kvdc
capacitance range: 40pf to 400pf
reactive power: 10kva to 50kva
frequency: 1 mhz to 30 mhz
applications
industrial and medical rf power supply
antenna couplers
radio broadcast transmitters
rf induction and dielectric heating equipment
hf filter, by-pass & coupling circuits
high power matching tuned circuits
industrial applications
high power matching networks –plasma generators
high quality medical imaging systems (mri)
rated voltage: 7500v, 7.5kv, 10kv, 15kv, 25kv
capacitance: 40pf, 45pf, 50pf, 55pf, 60pf, 65pf, 75pf, 100pf, 120pf, 150pf, 170pf, 200pf, 250pf, 400pf
power: 10kva, 15kva, 20kva, 25kva, 30kva, 35kva, 50kva
frequency rating: 1 mhz, 10 mhz, 30 mhz
specifications,
ht50 7.5kv 10kva: 40pf, 45pf, 50pf, 55pf, 60pf, 65pf, 75pf, 100pf, 120pf, 150pf, 170pf
ht57 15kv 20kva: 75pf, 100pf, 120pf, 150pf, 170pf, 200pf
ht59 25kv 50kva: 150pf, 200pf, 250pf, 400pf
ht69 25kv 50kva: 150pf, 200pf, 250pf, 400pf
