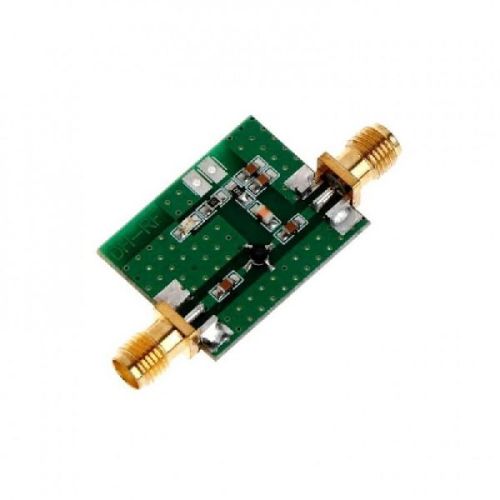

RF Wideband Amplifier Gain

Listing ID #6135841

559 / Piece

Get Latest Price

Weight (GM)5
FeaturesThis product with wide frequency range, high gain, low noise figure,This product can be applied to various RF receive front-end and increases communication distance.
Maximum power output+10dBm at 10mW
Diameter of end Connector (mm)6.20
Supply Type Manufacturer, Exporter, Retailer, Trader

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Weight (GM) 5
Features This product with wide frequency range, high gain, low noise figure,This product can be applied to various RF receive front-end and increases communication distance.
System impedance 50
End Connector gender SMA-Female
Input supply voltage Range 6-12 VDC
Amplifier gain F=0.1MHz, gain=32dB F=500Mhz, gain=31dB F=1000MHz, gain=29dB F=1500Mhz, gain=25dB F=2000MHz, gain=20dB
Diameter of end Connector (mm) 6.20
Module Dimensions (LxWxH) (mm) 52 x 25 x 6
Maximum power output +10dBm at 10mW
PCB Colour Green + Gold
Operating frequency 0.1-2000MHz
