RFID Long Range Reader

We are offering iso18000-6b/c rfid long range reader with stable range 3m~5m.
view larger image
displaying 1/1
displaying 1/1

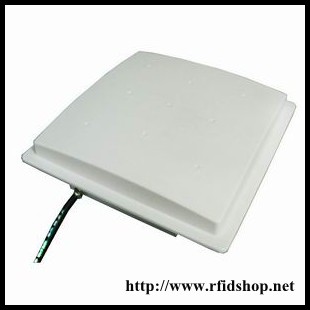

iso18000-6b/c rfid long range reader with stable range 3m~5m
item#: d-think_u81s
retail price: us$348.50
wholesale price: us$€
¥
348.50
start from: 1 unit(s)
manufactured by: d-think technologies,inc.
weight: 3 kg(s)
qty.range(unit) price(per unit) discount
1-9 us$348.50 no
10-29 us$313.65 10%
30-39 us$278.80 20%
40-99 us$261.38 25%
100-299 us$243.95 30%
300-499 us$226.53 35%
500+ us$202.13 42%
description:
u81 reader is a structured, full-featured rfid reader with 915mhz frequency, which contains radio frequency (rf) module, digital signal processing, input/output ports and a serial communication port, it can read and write simultaneously.
u81 reader supports multi-protocol rfid tag, protocol iso18000-6b and epc international standards, it can read and write ucode, ti, alian and other labels it optimizes the performance of the mainly used tag chips. Reader can be easily upgraded to meet application needs of the protocol and function extension to protect users'investment.
u81 reader is integrated design with built-in antenna, the effective read and write range is big, fast-moving tag can be identified. Single integration, ultra-thin outside structure and waterproof design makes it easy to install in mechanical engineering.
features
• integrated design, compact, easy to install
• built-in 8dbi high-gain circularly polarized antenna, stable reading distance 3~5 m
• compatible with 6b, 6c dual protocol
• broad-spectrum frequency-hopping mode with superior anti-jamming features
• multi-synchronization function
• multi-programming language development kits, easy to upgrade
• interface-rich and customizable
technical parameters
technical parameter
description
operating frequency
902mhz~928mhz(customizable)
support protocol
iso18000-6b,epc class 1,epc class 1 gen 2,container tags,railway tags
working mode
broad-spectrum frequency hopping (fhss) or fixed frequency by software
built-in antenna
8 dbi antenna
max rf output frequency
30 dbm
power flatness
