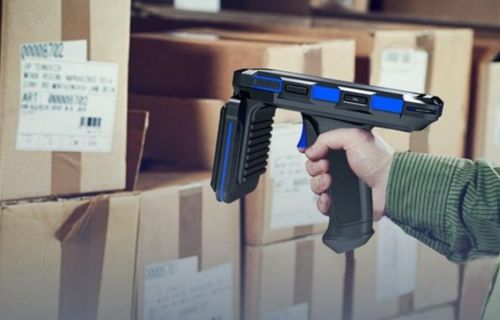

860-960mhz RFID PDA Reader

Ultra-High Frequency (UHF) Handheld Terminal Product Introduction

Model: 6100

The 6100 UHF handheld terminal is a high-performance portable RFID reader/writer supporting the UHF frequency band (840~960MHz). It features long-range fast identification and large-capacity data processing, designed for logistics warehousing, retail inventory, asset management, and other scenarios to enhance efficiency and accuracy.

1. High-Performance Reading/Writing

   • Supports ISO18000-6C (EPC C1G2) protocol, with a reading range of up to 0~15 meters (depending on tags and environment).

   • Multi-tag recognition capability, processing 200+ tags per second with strong anti-interference performance.

2. Industrial-Grade Design

   • IP67 protection rating, dustproof and waterproof, withstands drops from 1.5 meters, suitable for harsh environments.

   • High-capacity lithium battery supports 8~12 hours of continuous operation, with fast charging and replaceable battery options.

3. Smart Interaction

   • 4-inch HD touchscreen, runs on Android/WinCE systems for intuitive operation.

   • Built-in GPS, Bluetooth, 4G/Wi-Fi for real-time data transmission to cloud platforms.

4. Multi-Functional Expansion

   • Optional barcode/QR code scanner and 5MP camera for hybrid data capture.

   • Provides SDK development kit for secondary development and system integration.

• Warehousing & Logistics: Bulk goods inventory management, pallet tracking.

• Retail Stores: Rapid product inspection, stock management.

• Asset Management: Fixed asset tag identification, lifecycle tracking.

• Manufacturing: Process monitoring, material traceability.

Product parameter

Product size: 166*79*31±2mm (excluding shield and handle grip)

Screen: 5.5 inch bright screen

System: Android 10.0 OS

Resolution: 720*1440

Battery capacity: 4800mAh

USB type: Type-c data interface

Working hours: 14 hours

Communication: 4G, 3G, 2G free switching

Network: WIFI

Positioning: GPS/Beidou

• Precision & Efficiency: Industry-leading tag recognition rate (>99%).

• Customizable: Supports hardware/software customization.

• Global Certifications: Compliant with CE, FCC, and RoHS for international use.
