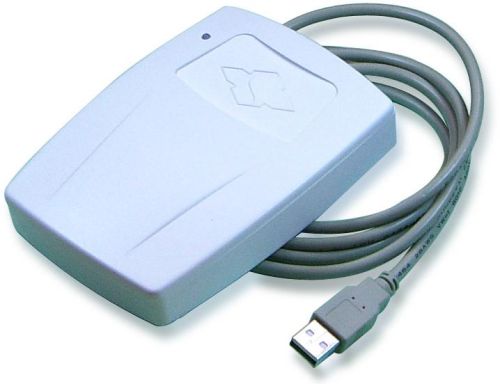

RFID Reader - (mr761), Brand Name : jinmuyu

Mr761 series, based on nxp pcd, is the desktop reader. The reader supports series ic cards according to iso14443a, iso14443b and outputs the data by the way of simulation keyboard through usb interface. Mr761 ic card is desktop reader with usb interface (hid standard). In the systems of windows, linux and other pc systems support usb keyboard, the reader imitates the usb keyboard to operate the card data. With our software and dip switch, the users can set the reader if to read the number of the card or the data of the card or both. And the data can be positive sequence output or be reverse order output. Meanwhile the users can choose freely the key output such as enter, tab etc. After the output of the number and the data of the card.
the default of the mr761 is configuration mode in factory setting. If you want to let the reader work, you need deploy it through the software and input the configuration information to the reader. The reader embeds 2 sam card slots. If the users need read the sam card and use the sam to cooperate with the operation, and then you can contact us, we will help you do the job.
