RFID Reader, Brand Name : GAO

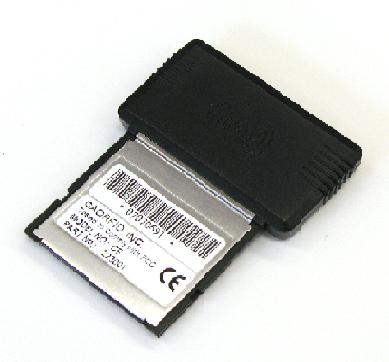

We are offering High Frequency (HF) PDA CF RFID Reader/Writer
This small compact flash unit is designed to read and write Mifare MF1 tags which can be used for numerous close proximity applications. Some of the more common uses of this CF device are for writing tags that would be used for time and attendance, guard tour patrol, and access control Tags. The readers small form factor and portable nature facilitates the interrogation of RFID tags deployed in numerous locations.
This reader/writer features low power consumption, light weight and a compact size. It has a maximum read distance of 3cm and has a baud rate of 19200bps. The RFID reader/writer has a built-in antenna and is power from the device it is inserted into such as a PDA. It conducts omni-directional tag reading.
Technical Specifications - High Frequency (HF) PDA CF RFID Reader/Writer
Power requirements
CF connector from PDA
Housing
CF Card Type 1
Baud rate
19200 bps 8,N,1, no flow control
Data structure
STX, DATA, CR, LF
Frequency
13.56 MHz, ASK
Power
Less than 5 mA
Read distance
3cm at maximum
Technical certificates
CE, FCC
Humidity
10% to 90% relative
Multi- detection
Yes
Antenna compatibility
None required
Technical certificates
ISO 14443A
Operating temperature
-10 °C to 60 ° C
Storage temperature
-20 °C to 65 °C
Dimensions
69.0 mm × 55.0 mm × 9.6 mm with cover
Weight
30 g
