RFID Reader Writer Module

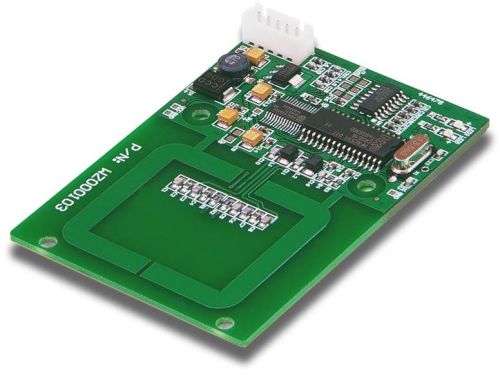

Jmy603 series are rfid reader writer module with uart serial ports. Jmy603 has various functions and supports multi isoiec standard of contactless ic card; the cards from different suppliers. The designer combined some frequent used command of rf ic card and then user could operate the cards with full function by sending simple command to the module. The module and antenna are integrated design. The impedance between rf module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability.
qualifications:
•authenticated: bctc(the bank card test center )--contactless bank card level 1
•pcd: nxp rc400, rc500, rc531, rc632
•working frequency: 13.56mhz
•rf standard: iso14443a, iso14443b, iso15693
•operating distance: 80mm (mifare one, typical distance)
•anti collision ability: full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
•auto detecting card: supported, default off
•eeprom: 512 bytes
•interface: rs232c
•baud rate: 19200--115200 bps
•power supply: dc5v
•power consumption: 80ma
•dimension: 85mm×60mm×10mm
•weight: about 25g
•operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
•storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f).
