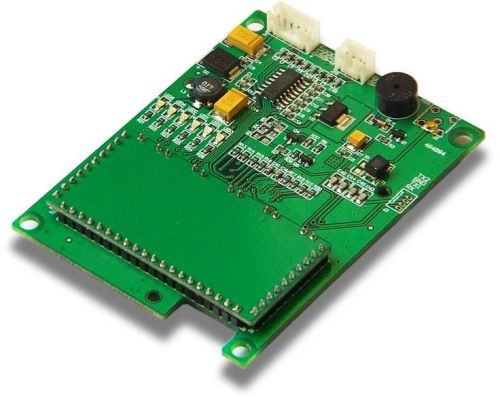

RFID Reader Writer Module

JMY610 series are RFID readerwriter module with UART and IIC serial ports. JMY610 has various functions and supports multi ISOIEC standard of contactless card; the cards from different suppliers. The designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module through IIC or UART interface. The impedance between RF module and antenna was tuned by impedance analyzer. And then the module has excellent performance and stability. And the module and antenna are separate design. 50ohm coaxial line is linked the antenna and module. Normally the wire should be less than 200mm, or it will affect the module's performance and stability.
Qualifications:
•PCD: NXP RC5 , 00RC531 , RC632
•Working frequency: 13.56MHz
•RF standard: ISO14443A, ISO14443B , ISO15693
•Operating distance: 100mm(depending on card and antenna design)
•Anti collision ability: Full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
•Auto detecting card: Supported, default ON
•EEPROM: 512 Bytes
•Interface: RS232C
•Communication rate: IIC--400Kbps, UART--19.2Kbps115.2Kbps
•Max.command length: 1024 Bytes
•Interface level: 3.3V(TTL level; 5V tolerance)
•Power supply: DC 2.7V ~ 5.0V
•Power consumption: 150mA
•Dimension: 87mm×65mm×10mm
•Weight: about 15g
•Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
•Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
•ISP: Supported
•RoHS: Compliant
