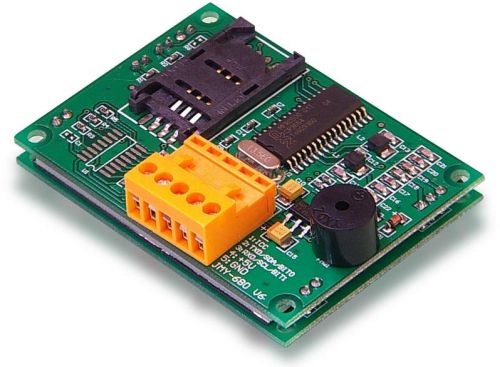

RFID Reader Writer Module

Jmy680 series are rfid reader writer module with iic or uart serial ports. Jmy680 has various functions and supports multi isoiec standard of contactless ic card; the cards from different suppliers. The designer combined some frequent used command of rf ic card and then user could operate the cards with full function by sending simple command to the module through iic or uart interface. The module and antenna are integrated design. And the impedance between rf module and antenna was tuned by impedance analyzer. So the module has excellent performance and stability.
qualifications:
-pcd: nxp rc500, rc531, rc400, rc632
-working frequency: 13.56mhz
-rf standard: iso14443a, iso14443b, iso15693
-operating distance: 80mm(depending on card and antenna design)
-anti collision ability: full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only
-auto detecting card: supported, default on
-sam card slot: 1 slot, 9600bps 38400bps
-eeprom: 512 bytes
-ppss set: supported
-interface: iic, uart, rs232c or usb to rs232c bridge(select while place order)
-communication rate: iic--400kbps; uart--19.2kbps115.2kbps
-max.command length: 511 bytes
-interface level: 3.3v (ttl level; 5v tolerance)
-power supply: 5.0v
-power consumption: 150ma
-dimension: 70mm, 50mm, 16.5mm
-weight: about 120g
-operating temperature: -25 ~ +85(-77 ~ +185â°f)
-storage temperature: -40 ~ +125(-104 ~ +257â°f)
-isp: supported
-rohs: compliant.
