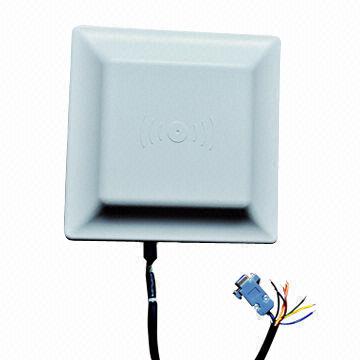

RFID Readers, Brand Name : SXK

We are offering rfid readers self-intellectual property
supports (epc c1g2) protocol tag
902 to 928mhz frequency band (optional)
fhss or fix frequency transmission
rf output power up to 30dbm (adjustable)
8 and 12dbi antenna optional with effective distance up to 3 and 10m
supports auto-running, interactive and trigger-activating work mode
low power dissipation with single 9v dc power supply
supports rs232, rs485 and wieg and interface
effective distance depends on antenna, tag and environment
designed upon fully self-intellectual property
based on proprietary efficient dsp algorithm, supports fast tag readwrite operation with high identification rate
widely used in rfid application systems such as logistics, access control, anti-counterfeit and industrial production process control system
interface:
red: 9v
black: ground
yellow: wiegand data 0
blue: wiegand data 1
purple: rs485 r+
orange: rs485 r-
brown: ground
white: rs232 rxd
green: rs232 txd
gray: trigger input (ttl level)
optional model named as uhf reader18tcp with tcpip interface also available.
