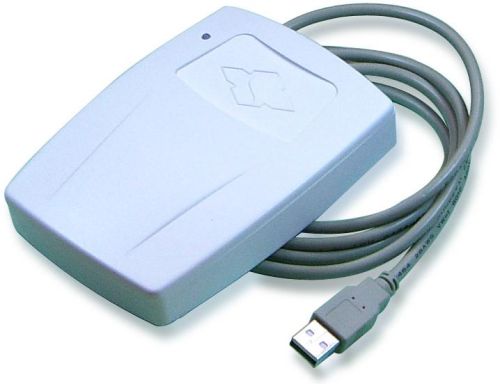

RFID Smart Card Reader

We are offering 13.56mhz rfid smart card reader mr810 with arm7 mcu and usb pc/sc interface
mr810 series, based on nxp pcd, are the usb pc/sc interface smart reader. The reader supports series ic cards according to iso14443a, iso14443b, iso15693 and iso7816; various contactless ic card under international standard; especially the contactless cpu cards under iso14443-4. Meanwhile the reader is available to pass emv2000 and pboc 2.0 and be authenticated by many laboratorial certifications---visa wave & pay pass (by fime) and the bank card test center. There are 2 sam card slots in the reader which support sam cards compliant with iso7816 (t=0 and t=1). The reader supports card-reset of various communication rate; ppss operation after card-reset; sam operation of various communication rate. Qualifications:
• pcd: nxp rc531, rc632
• working frequency: 13.56mhz
• rf standard: iso14443a, iso14443b, iso15693
• operating distance: 100mm (mifare one, typical distance)
• sam card slot: 2 slots, (supports iso7816 t=0 and t=1)
• interface: usb pc/sc
• power supply: dc5v ± 10%
• power consumption: 0.9w
• dimension: 123mm×88mm×25mm
• weight: about 100g
• operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
• storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f)
