RFID Smart Card Reader

₹ 181 / 60 60 Set

MOQ1 Set(s)
SAM card slot2 slots, supported 9600, 19200, 38400, 55800, 57600, 115200, 230400bps
InterfaceUSB PC/SC
PCDNXP RC531,RC632,RC400,RC500(select)
MCUARM7 NXP LPC2368 at 60MHz, 512KB FLASH + 64KB RAM
Display128×64 LCD, the color of LED: red, yellow, blue, green
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

SAM card slot2 slots, supported 9600, 19200, 38400, 55800, 57600, 115200, 230400bps
MCUARM7 NXP LPC2368 at 60MHz, 512KB FLASH + 64KB RAM
InterfaceUSB PC/SC
PCDNXP RC531,RC632,RC400,RC500(select)
Display128×64 LCD, the color of LED: red, yellow, blue, green

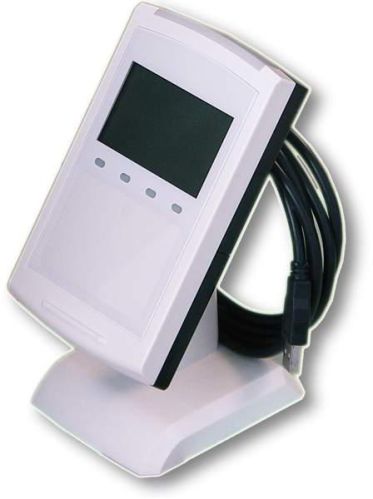

We are offering 13.56mhz rfid smart card reader mr800 with lcd display and usb pc/sc interface.
mr800 series for reader/writer with the popular arm7 microprocessors are of rapid & stable, reliable operation and beautiful appearance. User can choose freely if with the lcd display modul(128x64). They support boot screen & idle screen set and picture storage etc. The interface is usb pc/sc. They can be directly used the windows operating system with driver and the api functions. The development cycle simple and short. The reader not only supports series ic cards according to iso14443 typea/b, iso15693 but also sam cards compliant with iso7816 (t=0 and t=1). Qualifications:
• pcd: nxp rc531, rc632; rc400, rc500(select)
• working frequency: 13.56mhz
• rf standard: iso14443a, iso14443b, iso15693
• operating distance: 100mm (mifare one, typical distance)
• sam card slot: 2 slots, (supports iso7816 t=0 and t=1)
• interface: usb pc/sc
• power supply: usb dc5v
• power consumption: 0.9w
• led: four led (red, green, blue, yellow)
• dimension: 123mm × 88mm × 25mm
• weight: about 200g
• operating temperature: -25 ~ +85 ℃ (-77 ~ +185°f)
• storage temperature: -40 ~ +125 ℃ (-104 ~ +257°f).
