RFID Wifi Reader, Brand Name : GAO

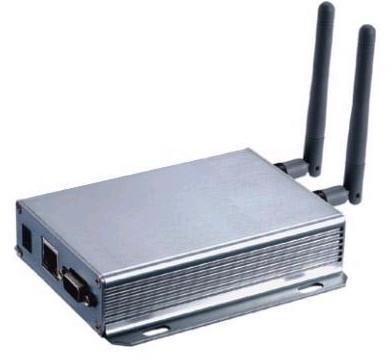

We are offering 2.45 Ghz Gain Adjustable Active Rfid Wifi Reader. The 2.45 ghz gain adjustable rfid reader uses a built in omni-directional antenna allowing it to identify transponder tagged items up to 100 meters in all directions. Users can adjust the identification distance from less than 5 meters to 100 meters according to actual situations in order to make identification more accurate. The reader uses an advanced 0.18 âµm cmos ic for ultra-low power. This active reader uses wifi (802.11b wireless communication standard) for data transmission to a host system. In addition, the wifi reader has dual operating modes allowing for the upload of data in real time or data buffering for later retrieval.
application usage - 2.45 ghz gain adjustable active wifi rfid reader
personnel tracking, logistics, warehouse management, closed loop asset tracking, high value asset tracking
specifications - 2.45 ghz gain adjustable active wifi rfid reader
direction omni-directional, standard whip antenna
range 0 to 100 m adjustable
frequency 2.4 ghz to 2.5 ghz ism
rf output power 0 dbm
sensitivity -90 dbm
power 50 ma, 9 v
modulation gfsk
mode direct mode and buffering mode. In direct mode, the readerupload messages to the host system in real time. In buffering mode, the reader receives and saves messages, which are uploaded only when requested by the host system.
buffer capacity 800 latest messages
data rate 1 mbps
interface 802.1 1b
dimensions 126 x 104 x 28 mm
operating temperature -40 â°c to 80 â°c
operating humidity 95% non-condensing
multi-detection 100 tags/sec
