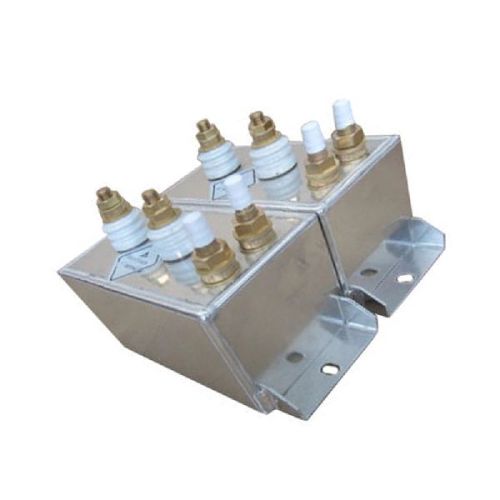

<50KHz RFM3.0-500-15S Water Cooled Capacitor, Power : 3-9 kw

Power capacitors application solution for induct furnace / switch on and off / welding machine power supply RFM series, super audio water-cooled electric capacitance
Function and Application :
To be applied for A/c harmonic voltage - 4.0KV, Frequency <50KHz induct heat power supply, To provide reactive power capacitive current The technology unique point :

• The whole film oil-immersed structure  NO PCB
• Single water/grouping scheme can be customized
• The outlet temperature of the cooling water to pure water, < 40 ?
• Conditions of use/technical parameters/product standards
• Temperature range - 25 ? ~ + 50 ?
• The outlet temperature of the cooling water to pure water,< 40 ?
• Rated voltage UN - 1 ~ 4.0 KV
• Rated frequency FN - < 50 KHZ
• QN the rated capacity:500 ~ 2000 kar
• The maximum current:=1000A
• Product standards - IEC60110-1(1998)
• GB/T3984.1-2004 (also can be made according to customer standard)
