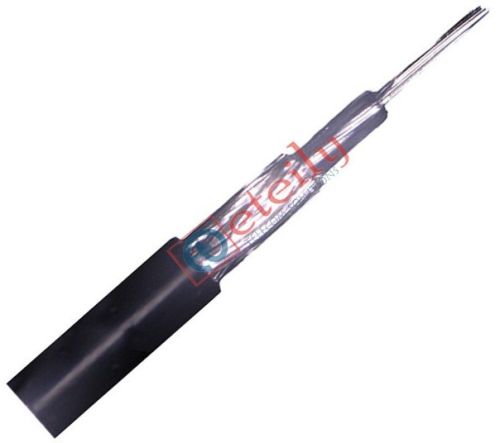

Rg 0.81mm Cable (RG-402), Color : Black

RG 0.81mm Cable (RG-402): A Versatile Coaxial Cable

RG 0.81mm cable, also known as RG-402, is a popular coaxial cable characterized by its small diameter and flexible nature. It is widely used in various applications due to its balance between performance and ease of installation.

Key Specifications:

\r
• Nominal Impedance: 50 ohms
\r
• Inner Conductor Diameter: 0.81 mm (approximately 0.032 inches)
\r
• Outer Conductor Diameter: 2.54 mm (approximately 0.1 inches)
\r
• Dielectric: Polyethylene (PE)
\r
• Jacket: Polyvinyl Chloride (PVC)
\r
• Operating Frequency: Typically ranges from 100 MHz to 1 GHz
\r
• Attenuation: Approximately 10 dB/100 meters at 1 GHz
\r

Applications:

\r
• Radio Frequency (RF) Transmission: Used for transmitting RF signals in various applications, including:\r
  \r
  • Amateur radio
  \r
  • CB radios
  \r
  • Short-range wireless communications
  \r
  • Cable television systems
  \r
  • Antenna feedlines
  \r
  \r
\r
• Test and Measurement Equipment: Employed in laboratory and field testing setups for RF and microwave signals.
\r
• General-Purpose RF Interconnects: Suitable for connecting RF components and devices in various electronic systems.
\r

Advantages:

\r
• Small Size and Flexibility: Easy to route and install in tight spaces.
\r
• Low Loss: Provides reasonable signal transmission with minimal attenuation.
\r
• Wide Operating Frequency Range: Covers a broad spectrum of RF frequencies.
\r
• Cost-Effective: Generally more affordable compared to larger diameter cables.
\r

Considerations:

\r
• Limited Bandwidth: May not be suitable for high-frequency applications requiring extremely low loss.
\r
• Susceptibility to Interference: Can be prone to interference from external sources, especially in noisy environments.
\r
• Mechanical Strength: While reasonably durable, it may require additional protection in harsh environments.
\r

Additional Information:

\r
• RG-402A: A variation of RG-0.81mm cable with a Teflon dielectric, offering improved performance at higher frequencies and temperatures.
\r
• RG-403: Another similar cable with a slightly larger diameter and improved shielding.
\r

Image:
